Двухступенчатые редукторы HRF

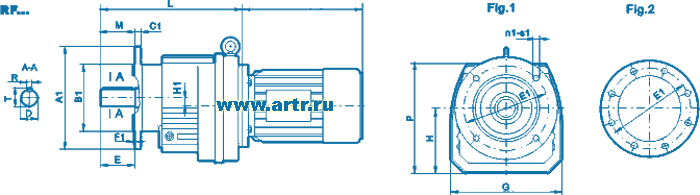

Типоразмер	присоединительные размеры									выходной вал				габаритные размеры
Типоразмер	Fig.	A1	E1	B1(h8)	M	C1	F1	n1	S1	D	E	T	R	H1	L	G	P	H
HRF07	Fig. 1	120 140 160	100 115 130	80 95 110	40	8 9 10	3 3 3.5	4	6.5 8.5 8.5	20k6	40	22.5	6	1.13	152	103	-	68
HRF17	Fig. 1	120 140 160	100 115 130	80 95 110	40	8 9 10	3 3 3.5	4	6.5 8.5 8.5	20k6	40	22.5	6	-	179	130	-	76
HRF27	Fig. 1	120 140 160	100 115 130	80 95 110	50	8 9 10	3 3 3.5	4	6.5 9 11	25k6	50	28	8	-	199	142	-	92
HRF37	Fig.1	120 160 200	100 130 165	80 110 130	50	8 10 12	3 3.5 3.5	4	6.5 9 11	25k6	50	28	8	4.9	201	161	149	90
HRF47	Fig.1	140 160 200	115 130 165	95 110 130	60	10 10 12	3 3.5 3.5	4	9 9 11	30k6	60	33	8	15.4	235	184	190	115
HRF57	Fig.1	160 200 250	130 165 215	110 130 180	70	10 12 15	3.5 3.5 4	4	9 11 13.5	35k6	70	38	10	11.2	257	202	-	121
HRF67	Fig.1	200 250	165 215	130 180	70	12 15	3.5 4	4	13.5 13.5	35k6	70	38	10	19.4	280	221	215	130
HRF77	Fig.1	250 300	215 265	180 230	80	15 18.5	4 4	4	13.5 13.5	40к6	80	43	12	9.9	300	241	234	140
HRF87	Fig.1	300 350	265 300	230 250	100	16 18	5 5	4	13.5 17.5	50к6	100	53.5	14	16.8	372	303	298	180
HRF97	Fig.1	350 450	300 400	250 350	120	18 22	5 5	4	17.5 17.5	60m6	120	64	18	11.2	440	354	368	225
HRF107	Fig.1 Fig.2	350 450	300 400	250 350	140	20 22	5 5	4 8	17.5 17.5	70m6	140	74.5	20	24.4	495	415	411	250
HRF137	Fig.2	450 550	400 500	350 450	170	22 25	5	8	17.5 17.5	90m6	170	95	25	35.2	589	464	505	315
HRF147	Fig.2	450 550	400 500	350 450	210	22 25	5	8	17.5 17.5	110m6	210	116	28	41	695	548	569	355H
HRF167	Fig.2	550 660	500 600	450 550	210	25 28	6	8	17.5 22	120m6	210	127	32	63	790	678	679	425

Габаритные и присоединительные размеры входных фланцев

Типоразмер	Фланец	Fig.	B5	E5	F5	G2	G5	S5	Z5	D1	L1	T1	U1
RF37	PAM:63	1	95	115	3.5	120	140	M8	72	11	23	12.8	4
	PAM:71		110	130			160			14	30	16.3	5
	PAM:80		130	165	4.5		200	M10	106	19	40	21.8	6
	PAM:90*									24	50	27.3	8
RF47 RF67	PAM:63	1	95	115 130	3.5	160	140	M8	66	11	23	12.8	4
	PAM:71		110				160			14	30	16.3	5
	PAM:80		130	165	4.5		200	M10	99	19	40	21.8	6
	PAM:90									24	50	27.3	8
	PAM:100*		180	215	5		250	M12	134	28	60	31.3	8
	PAM:112*
RF77	PAM:71	1	110	130	3.5	200	160	M8	60	14	30	16.3	5
	PAM:80		130	165	4.5		200	M10	92	19	40	21.8	6
	PAM:90									24	50	27.3	8
	PAM:100*		180	215	5		250	M12	126	28	60	31.3	8
	PAM:112*
	PAM:132*		230	265			300		179	38	80	41.3	10
RF87	PAM:80	1	130	165	4.5	250	200	M10	87	19	40	21.8	6
	PAM:90									24	50	27.3	8
	PAM:100		180	215	5		250	M12	121	28	60	31.3	8
	PAM:112
	PAM:132		230	265			300		174	38	80	41.3	10
	PAM:160*		250	300	6		350	M16	232	42	110	45.3	12
	PAM:180*									48		51.8	14
RF97	PAM:100	1	180	215	5	300	250	M12	116	28	60	31.3	8
	PAM:112
	PAM:132		230	265			300		169	38	80	41.3	10
	PAM:160		250	300	6		350	M16	227	42	110	45.3	12
	PAM:180									48		51.8	14
	PAM:200		300	350	7		400		268	55		59.3	16
	PAM:225*	2	350	400			450		283	60	140	64.4	18
RF107	PAM:100	1	180	215	5	350	250	M12	110	28	60	31.3	8
	PAM:112
	PAM:132		230	265			300		163	38	80	41.3	10
	PAM:160		250	300	6		350	M16	221	42	110	45.3	12
	PAM:180									48		51.8	14
	PAM:200		300	350	7		400		262	55		59.3	16
	PAM:225	2	350	400			450		277	60	140	64.4	18
RF137	PAM:132	1	230	265	5	400	300	M12	156	38	80	41.3	10
	PAM:160		250	300	6		350	M16	214	42	110	45.3	12
	PAM:180								255	48		51.8	14
	PAM:200		300	350	7		400			55		59.3	16
	PAM:225	2	350	400			450		270	60	140	64.4	18
RF147	PAM:132	1	230	265	5	450	300	M12	148	38	80	41.3	10
	PAM:160		250	300	6		350	M16	206	42	110	45.3	12
	PAM:180									48		51.8	14
	PAM:200		300	350	7		400		247	55		59.3	16
	PAM:225	2	350	400			450		262	60	140	64.4	18
	PAM:250		450	500			550		336	65		69.4
	PAM:280									75		79.9	20
RF167	PAM:160	1	250	300	6	550	350	M16	198	42	110	45.3	12
	PAM:180									48		51.8	14
	PAM:200		300	350	7		400		239	55		59.3	16
	PAM:225	2	350	400			450		254	60	140	64.4	18
	PAM:250		450	500			550		328	65		69.4
	PAM:280									75		79.9	20
